Single Ali-Rail

£20.09 excl. VAT | £24.11 incl. VAT

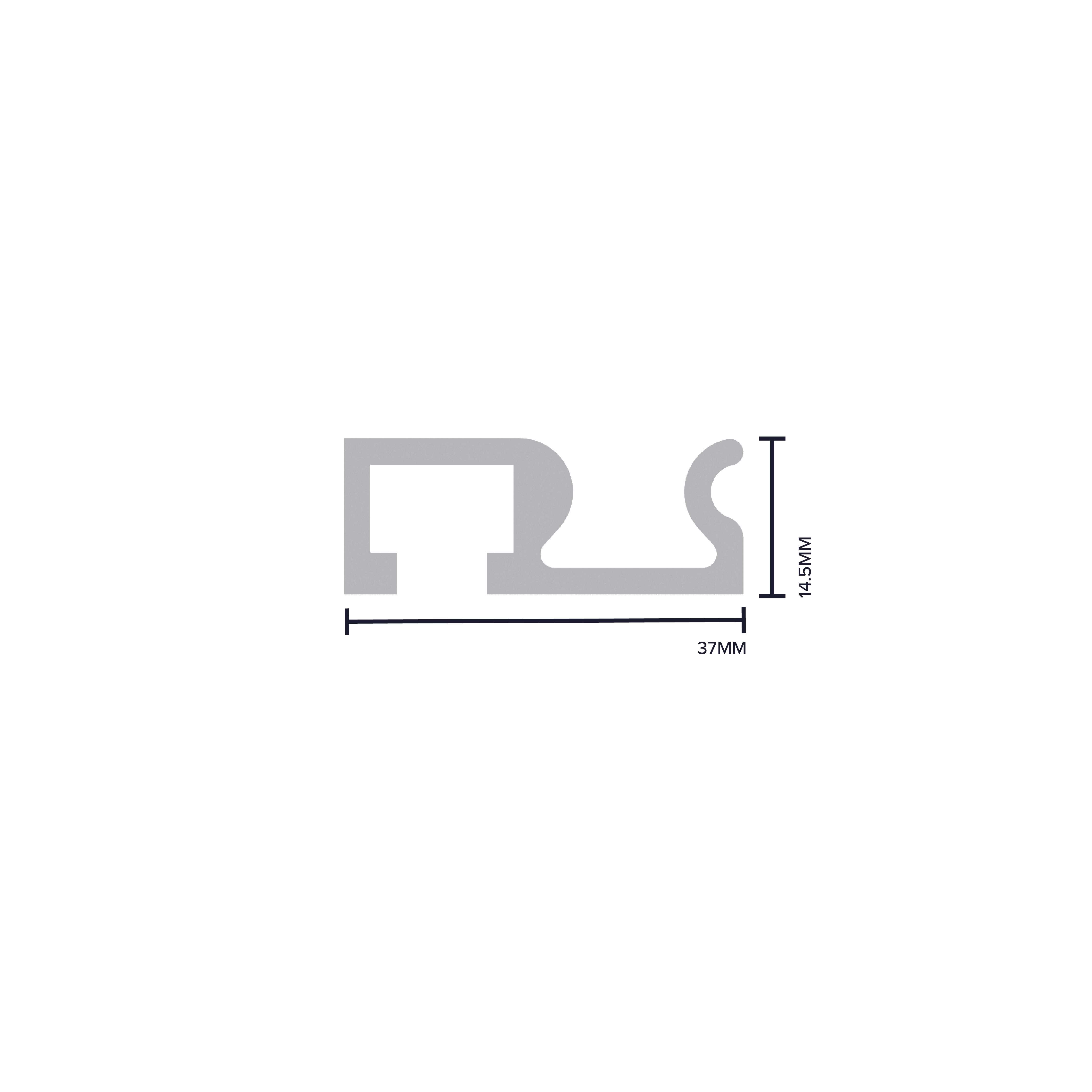

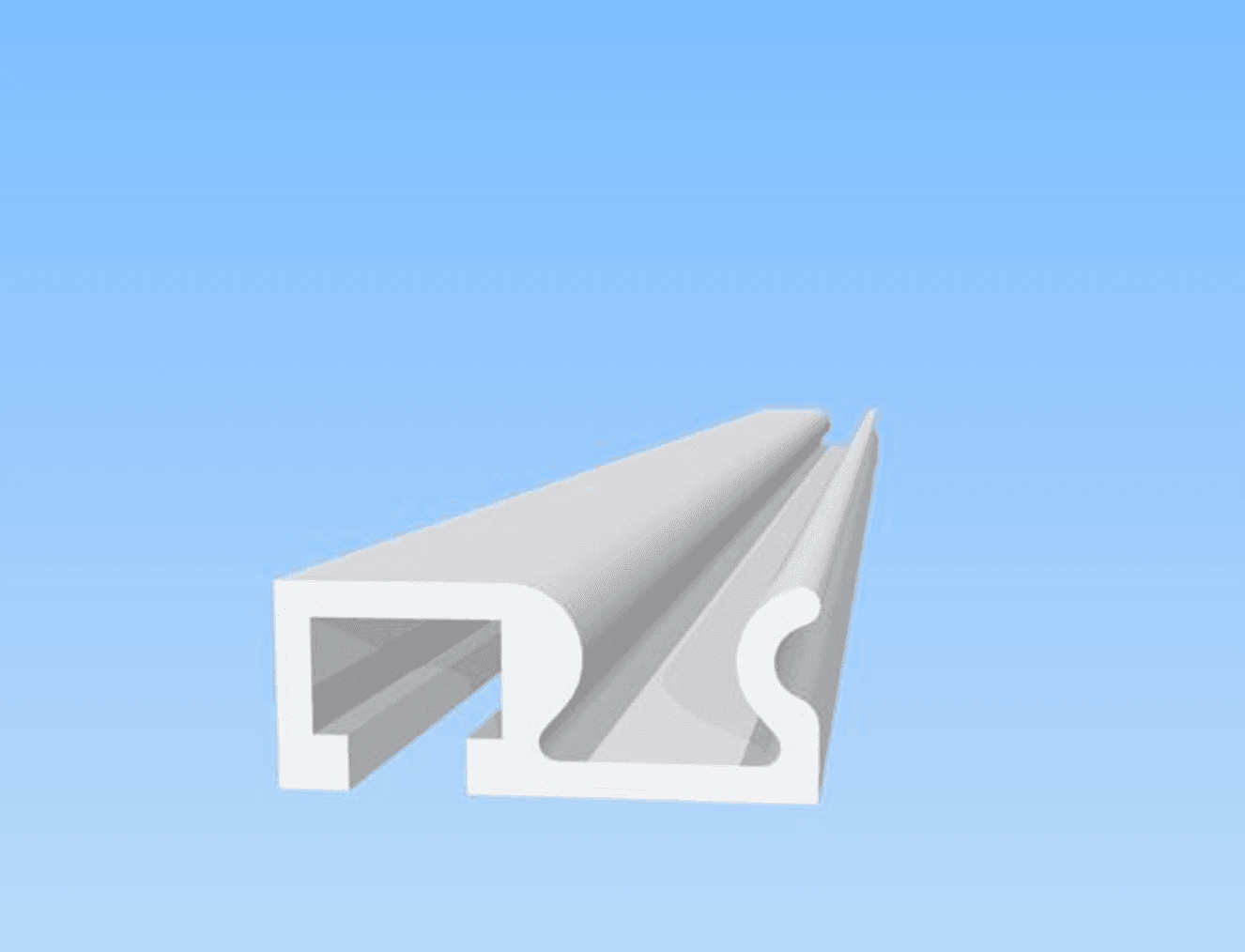

Available as a narrow rail (Ali-Rail) or as a beefed-up box section (Ali-Box).  Both types come with either a single trapping channel or a double trapping channel. Extruded from aluminium with a ‘T’ slot at the rear. The Ali-rail ‘T’ slot takes the hexagonal head of a M8 bolt, whilst the Ali-box takes M10.  The plastic grip strips (in-fills) are universal, therefore compatible with the whole Ali-trap range.

Description

Ali-Trap

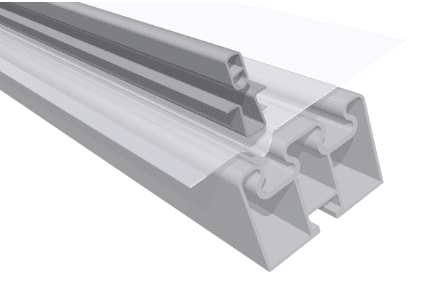

Single Ali-trap is mainly used for fixing polythene in to the gutters on a commercial polytunnel. Double Ali-rail is usually fixed over the top of the first and last hoop on a commercial polytunnel, allowing for a simpler, pleat free installation of the cover giving the structure a professional finish. Fittings are available to suit 50mm and 60mm OD hoops and are spaced every metre.

Ali-Box

Single Ali-box is mostly used to make our aluminium doors, as a lightweight base rail or end frame. The main use for double Ali-box is for side rails, base rails and end frames on our commercial polytunnels
