Tracked Crane Carrier
We have built this machine specifically for our work on large greenhouse builds where we need to get parts across the site without leaving ruts which would normally be left with a telehandler, the remote-controlled crane is then able to move the parts as required.
The machine is built on a 2-ton Canyacom tracked dumper with an 8-ton trailer crane, which has a lifting capacity of 1 ton with a 6m reach and a built-in winch.
The dumper seat swivels 180 degrees so that it makes the machine easy to drive forward or reverse.
The trailer has post holes to secure loads and is extendable for longer loads.
Specifications
- Height 3100mm
- Length 8300mm
- Width 2400mm
- Weight 5000kg
- Lifting Capacity 1200kg @ 1.2m
- Reach 6m

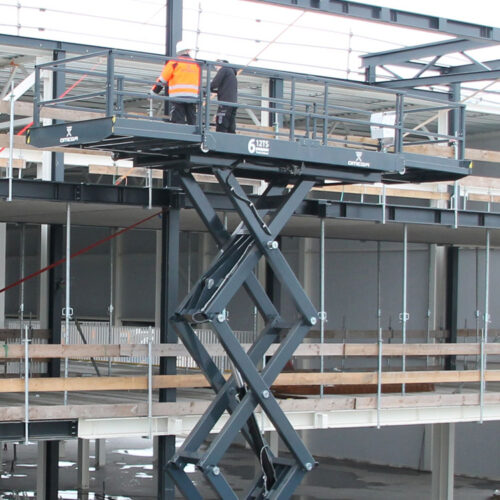

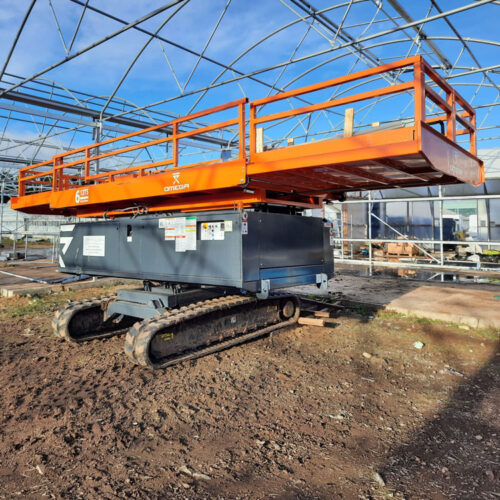

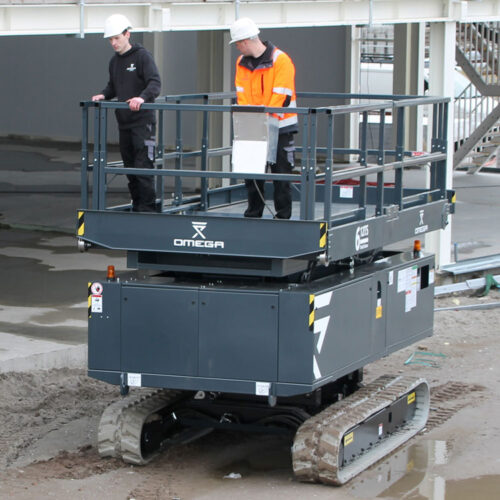

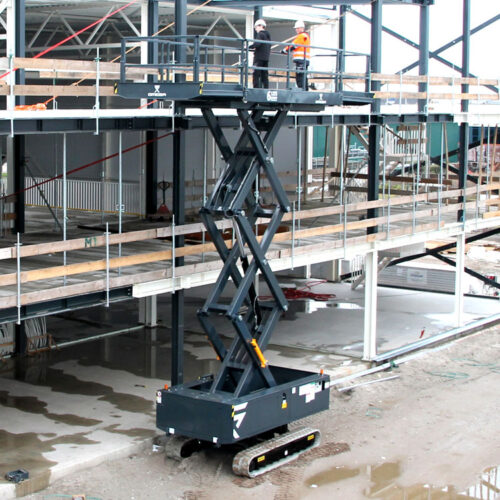

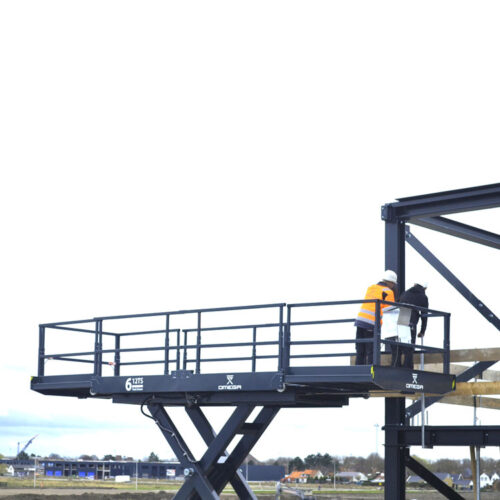

Omega 612TS Tracked Scissor Lift
Our large Omega scissor lift 612TS is self-levelling with a large working area, the 90-degree swivel platform will work in conditions where conventional wheeled scissor lifts get stuck.
The 90-degree Swivel feature on this machine is ideal for building or maintaining greenhouses and enables you to traverse down the length of the structure with the deck at 90 degrees.
The huge deck extensions allow you to work full width, making them ideal for building structures or installing screens, irrigation and other ancillary equipment.
Specifications
- Maximum working height 10.2m
- Maximum platform height 8.2m
- Stowed height (top guardrails) 3.2m
- Stowed height (guardrails lowered) 2.85m
- Stowed height (guardrails removed) 2.28m
- Length 4.16m
- Width 2.2m
- Lifting capacity 1250kg
- Ground clearance 350mm
- Platform length retracted 4m
- Platform length extended 7.1m
- Platform width 2.1m
- Gradeability 35%
- Platform levelling 5deg
- Platform rotation 90deg
- Weight 8200kg

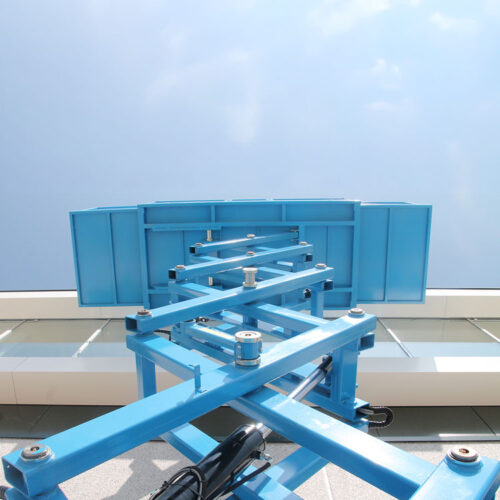

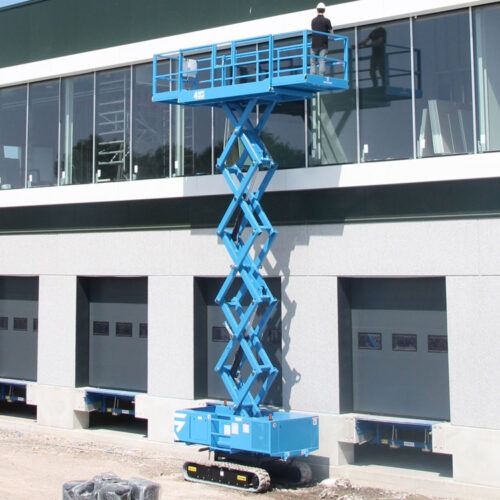

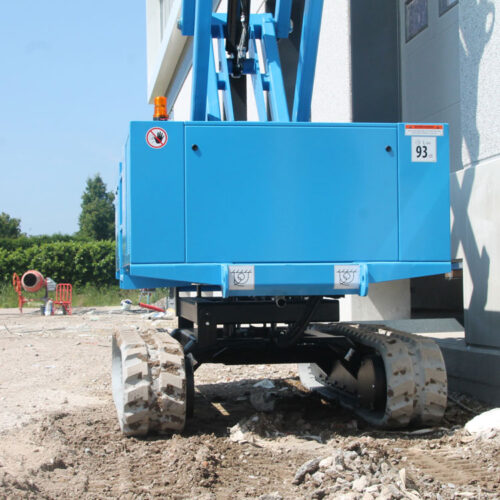

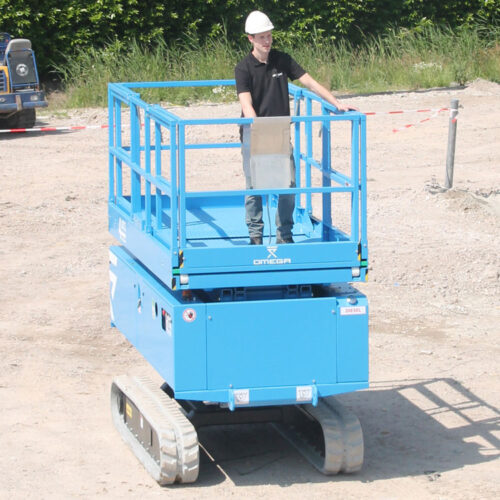

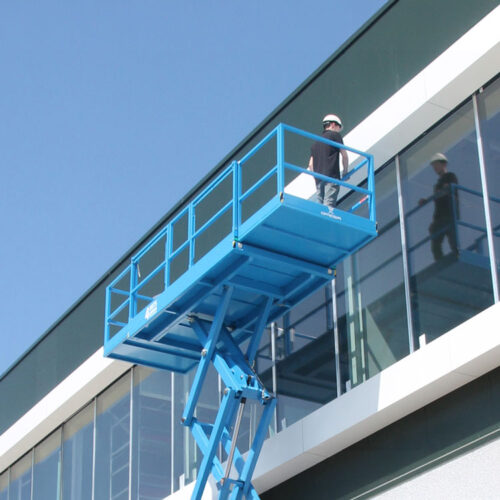

Omega 505TS Tracked Scissor Lift
Our large Omega scissor lift 505TS is self-levelling with a large working area, the 90-degree swivel platform will work in conditions where conventional wheeled scissor lifts get stuck.
The 90-degree Swivel feature on this machine is ideal for building or maintaining greenhouses and enables you to traverse down the length of the structure with the deck at 90 degrees.
The huge deck extensions allow you to work full width, making them ideal for building structures or installing screens, irrigation and other ancillary equipment.
Specifications
- Maximum working height 9.6m
- Maximum platform height 8.5m
- Stowed height (top guardrails) 2.82m
- Stowed height (guardrails lowered) 2.47m
- Stowed height (guardrails removed) 1.66m
- Length 3.5m
- Width 1.8m
- Lifting capacity 500kg
- Ground clearance 330mm
- Platform length retracted 3.5m
- Platform length extended 6m
- Platform width 1.7m
- Gradeability 40%
- Platform levelling (front, back) 6deg
- Platform levelling (sideways) 10deg
- Platform rotation 90deg
- Weight 5200kg

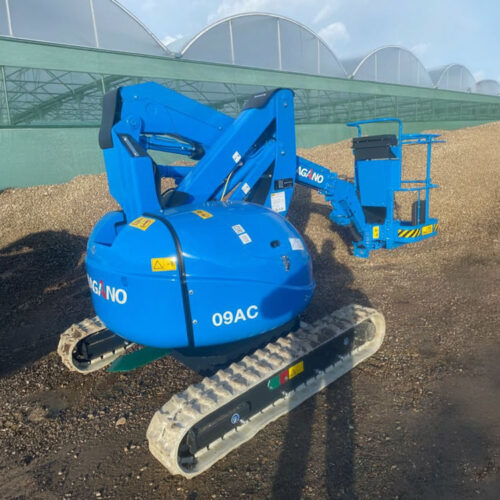

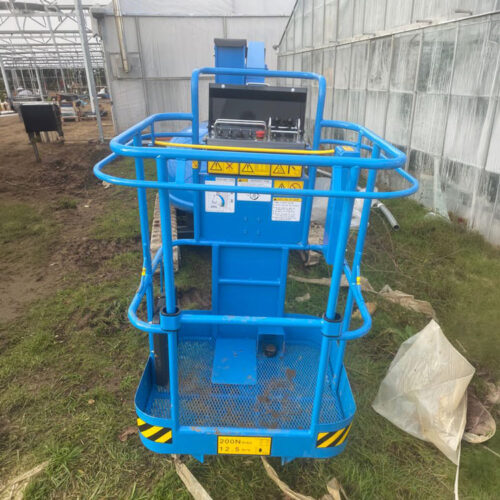

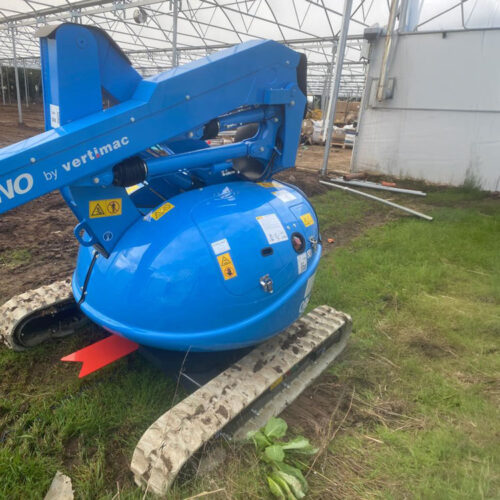

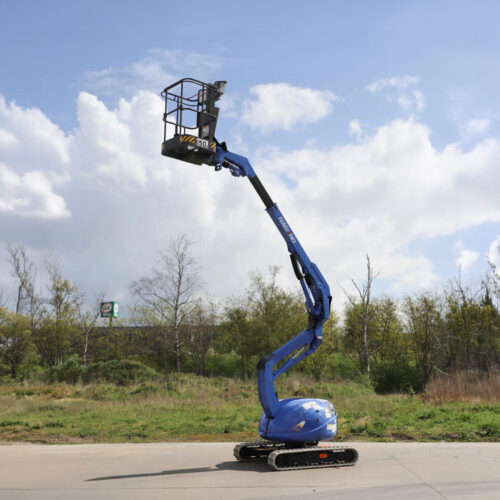

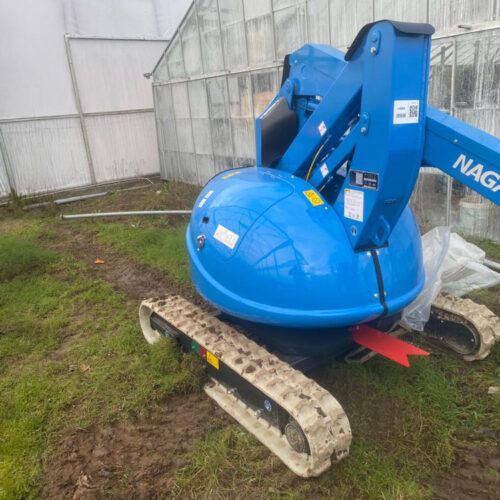

Nagano 09AC Tracked Boom Lifts
These compact and agile tracked crawler boom lifts are one-person operated with the capability to work and track on slopes of up to 5 degrees.
Unlike other small, tracked booms which limit tracking to ground level these machines will track at reduced speed with a 5.5m working height, which means a more efficient working experience.
These machines are generally used for smaller tasks which only need one person in the air, such as wiring and fitting out the structures once the main structure has been built.
Specifications:
- Maximum working height 8.8m
- Maximum platform height 6.8m
- Stowed height 1.99m
- Length 4.08m
- Width 1.65m
- Lifting capacity 150kg
- Ground clearance 330mm
- Platform length 3.5m
- Platform width .77m
- Platform length .62m
- Gradeability 30%
- Working tilt 5deg
- Weight 2620kg
Komatsu DP21P Compact Bulldozer
This compact bulldozer is capable of pre-build site levelling, due to its compact size it can work inside greenhouses or buildings for final floor finish levelling.
When forming growing beds this machine will level quickly and accurately with slope and camber adjustment to achieve the correct drainage on the beds. The machine is fitted with laser-level sensing equipment which controls the hydraulics on the machine to a high-level of tolerance.
The low ground pressure rubber track enables the machine to work on soft ground and reduces the potential of any damage when manoeuvring on finished surfaces and concrete.
Specifications:
- Height 2.45m
- Length 3.365m
- Width 2.56m
- Weight 4241kg
- Net engine power 40hp (30KW)
- Max speed 3.5mph
- Gears fwd 2
- Gears Rev 2
